CNC MACHINE MILLING YOU CAN TRUST
At DHL Machine and Tool, in Quakertown, Pennsylvania, we offer the latest in computer numerical control technology. Get the CNC machine services that will produce the items you need with excellent precision and accuracy. Paired with our thorough quality control process, we offer incredible value and reliability that makes us the perfect choice for businesses everywhere.
FIVE SIDED CNC MACHINING CENTERS

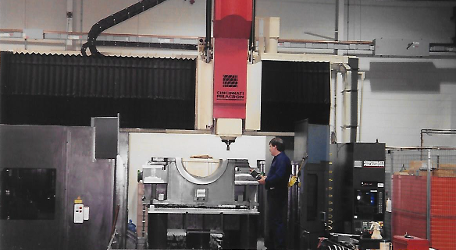

Cincinnati Milacron Sidewinder 5-Sided Bridge Type Machining Center
Travels: 142" X, 94" Y, 70" Z, +/- 1.00 Degrees A, 360 Degrees C Scales on all axes and probing routines for part inspection and verification. Automatic Head Changer for Vertical and Horizontal machining heads for 5-sided machining. 4000 RPM Spindle, 40 HP, Cat 50 Taper, High pressure through spindle coolant Acramatic 950 Controller
|
 |

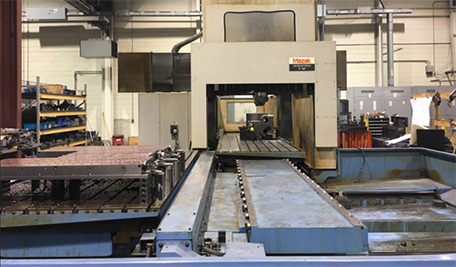

Mazak V-60 Bridge-type 5 Sided Machining Center
Travels: 126" X, 59" Y, 36" Z, with Pallet Changer with two 118" x 50" pallets. Scales on all axes and probing routines for part inspection and verification. Automatic Head Changer for Vertical and Horizontal machining heads. 4000 RPM Spindle, 25 HP, Cat 50 taper, High pressure through spindle coolant Mazak M-Plus Controller.
|
 |
Correa CF40/50 Omniversal Bed-type Machining Center
Travels: 197" X, 49" Y, 80" Z, Open-sided to accommodate oversized parts. Omniversal machining head for 5-sided machining. 2500 RPM spindle, 40 HP, Cat 50 taper
|
|
|
VERTICAL CNC MACHINING CENTERS
Mazak FJV 35/120 Double Column Vertical Machining Center
Travels: 118" X, 31.5" Y, 23" Z, Equipped with Renishaw probe and Live 4th Axis. 6000 RPM Spindle, 35 HP, Cat 50 taper, High pressure through spindle coolant Mazak M-Plus Controller
|
 |
(2) Mazak V-515 C-Frame Vertical Machining Center
Travels: 41" X, 20" Y, 22" Z, Equipped with Renishaw probe. 6000 RPM Spindle, 20 HP, Cat 50 taper High pressure through spindle coolant Mazak M-32 Controller
|
 |
Mazak Nexus 510C/50 Vertical Machining Center
Travels: 41.3" X, 20" Y, 23" Z, Equipped with Renishaw probe 6000 RPM Spindle, 30 HP, Cat 50 taper Mazatrol Matix Nexus Controller
|
 |
|
|
|
HORIZONTAL CNC MACHINING CENTER

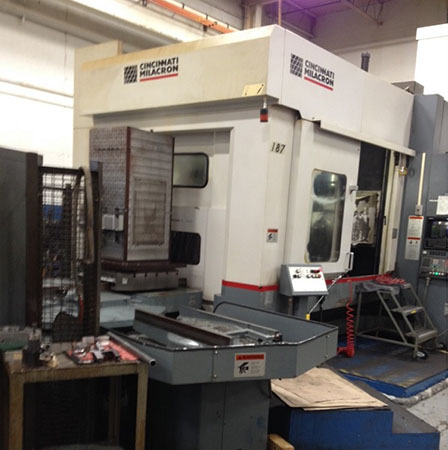

Cincinnati Milacron Magnum 800 Horizontal Machining Center
Travels: 51" X, 45" Y, 44" Z, 360 Degrees B. Scales on all axes and probing routines for part inspection and verification Live 4th axis and two 32" x 32" Pallets. 6500 RPM Spindle, 50HP, Cat 50 taper, High pressure through spindle coolant Acramatic 950 Controller
|
 |
CNC TURNING CENTER

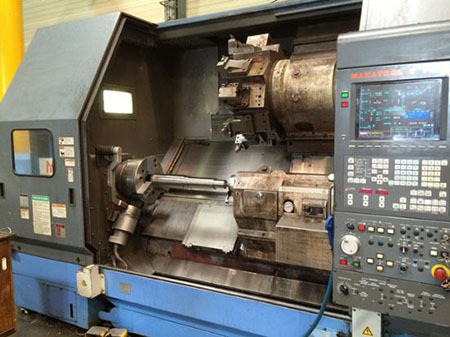

Mazak Slant Turn 50N Turning Center
Turning Capacity: 22" Diameter (31" swing) on 72" centers. Tool eye and programmable tailstock, 15 position turret, 1500 RPM, 50 HP Mazak T-Plus Controller
|
 |

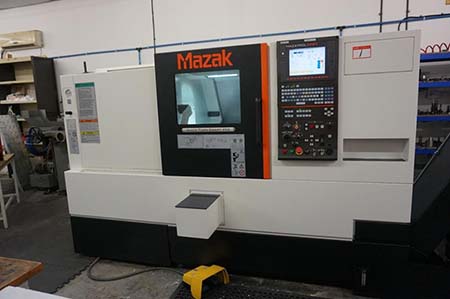

Mazak Quick Turn Smart 250 Turning Center
Turning Capacity: 12" Diameter on 40" centers. Tool eye and programmable tailstock, 12 position turret, 4000 RPM, 35 HP Mazak Mazatrol Smart Controller Milling Equipment
|
 |
|
|
|
|
